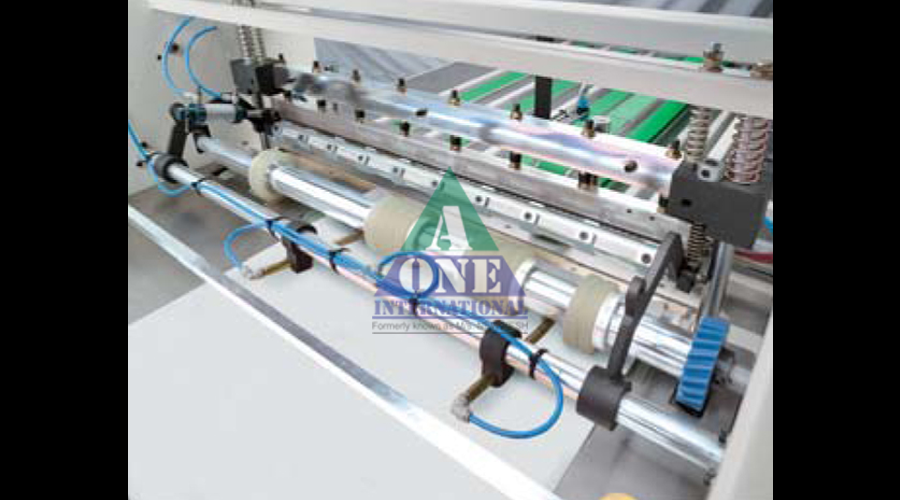

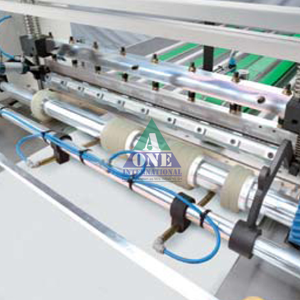

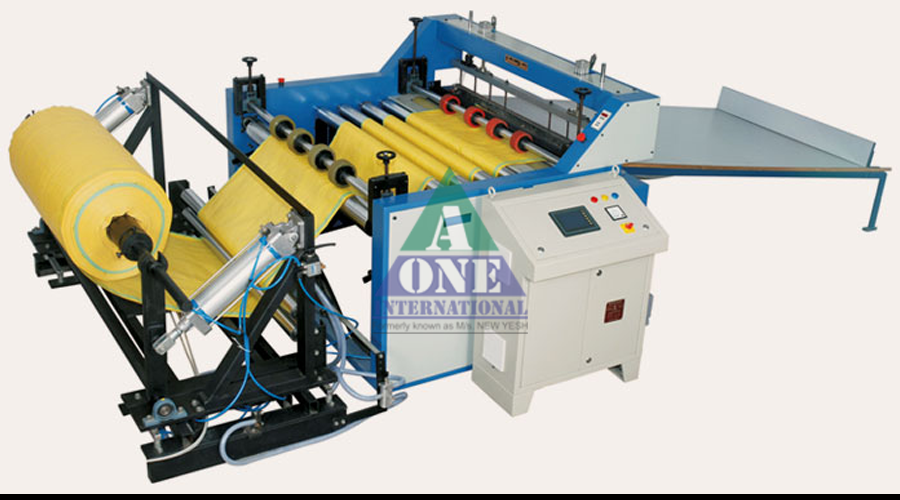

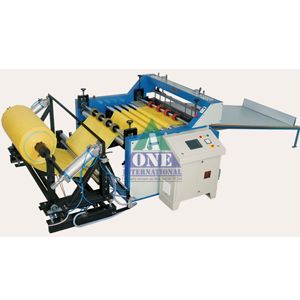

Automatic Woven Bag Cutting Machine
Automatic Bag Heat Cutting Machine is applied for cutting pp woven bag. This machine is stable in performance, and easy in operation.
We have different machine model for different cutting length.
We also provide Automatic Bag Cutting & Sewing Machine and Automatic Bag Heat Cutting- Sewing - Printing Machine.
Specification
| Description | Specification |
| DIAMETER OF UNWINDING CLOTH | 1200 mm Maximum |
| WIDTH OF UNWINDING CLOTH | 800 - 1600 mm Applicable |
| CUTTING LENGTH | 800 - 6000 mm Adjustable |
| PRODUCTION OUTPUT | 20 - 30 pcs/Min |
| FABRIC ROLL LIFTING | Pneumatic Type |
| FEED-IN FEEDING ROLLER MOTOR | 2 HP AC Motor |
| TENSION CONTROL | Dancing Roller Type |
| CUTTING LENGTH FEEDING ROLLER MOTOR | 3 HP AC Motor |
| LENGTH COUNTING | 0 ~ 5000 mm Applicable |
| CUTTING LENGTH ACCURACY | ± 1 % |
| CUTTING KNIFE | Heat Blade |
| ELECTRICITY HEAT | 3.5KVA |
| BAG MOUTH AUTOMATIC OPEN DEVICE | 1 set |
| POWER CONSUMPTION | 7 KW |
| DIMENSION (L X W X H) | 6,200 x 2,500 x 1,450 mm |
| WEIGHT | 3,800 kg |
| MANPOWER REQUIRED | 1 Person |
×
❮
❯
